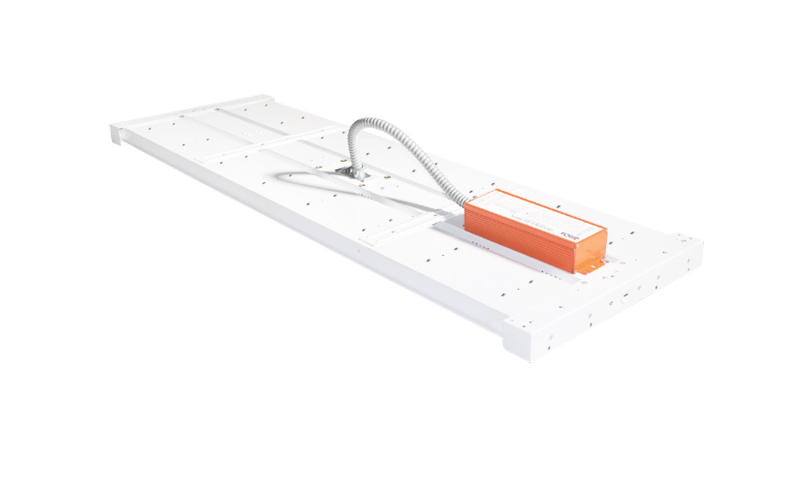

LED LINEAR HIGHBAY
SC-LHB3-SERIES
STANDARDS & FEATURES
• High quality isolated drivers; 0-10V dimming; Flicker free.

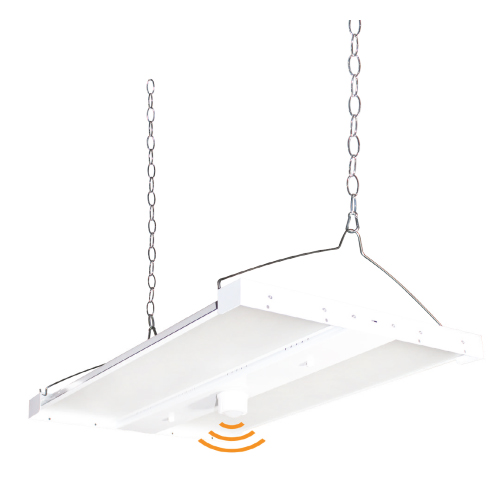

• Comes with various mounting options including V-hooks, chains, pendant and surface mounts. Pendant and surface mount options available.
• It complies with DLC Premium certification, 80+ CRI, ETL Certified.
• CRI : Ra>80, Colors : 50K / 40K. Luminous efficacy : 135 im/w (±10%).
• 5 Years Limited Warranty. See warranty documentation for more information.
| MODEL NO. | SC – LHB3-110W-2FT-50K-DHV | SC – LHB3-160W-2FT-50K-DHV | SC – LHB3-220W-2FT-50K-DHV |
|---|---|---|---|
| WATT | 110W | 160W | 220W |
| SIZE | 2F | 4F | 4F |
| LUMENS | 135 lm/w | 135 lm/w | 135 lm/w |
| VOLTAGE | 120-277V AC | 120-277V AC | 120-277V AC |
| CCT | 4000K / 5000K | 4000K / 5000K | 4000K / 5000K |
